Description
The Home of Tone®
MESA® Drive Pedals are built by the very same artisans that create the Award Winning Mark Five™, and the legendary Dual and Triple Rectifier®. They stand ready to serve up all genres of ROCK with cut and aggression, while retaining much of the signature warmth and organic sonic quality found in our amplifiers. Ranging from high to lower gain applications, including classic rock or howling blues, we have a drive pedal that will help you achieve the sounds that so many artists have employed in our amps to create the world’s heaviest guitar tones! And like each and every MESA product, our pedals are built using the same quality components, craftsmanship and inspiring performance as our custom amplifiers...all hand-built in Petaluma California, USA.... the Home of Tone®!
Overview

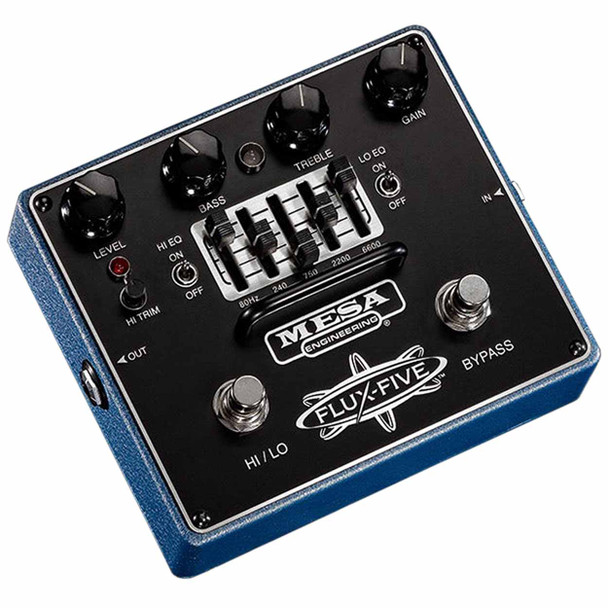

The FLUX-FIVE™ adds our classic Five Band Graphic EQ and footswitchable HI/LO performance Modes, featuring separate OUTPUT LEVEL controls to the already versatile FLUX-DRIVE™ package for increased tone shaping power and enhanced stylistic versatility.
The reception for the FLUX-DRIVE’s fat, smooth, expressive gain has been outstanding among Artists and players alike. With critical praise from around the globe, it was an obvious recipient for the enhanced power of our Five-Band EQ. The FLUX-FIVE overdrive is a supercharged version of our popular FLUX-DRIVE that features a “shrunk-to-size” version of our classic Boogie&ref; Five-Band Graphic EQ and new added versatility thanks to footswitchable HI/LO performance Modes. The LO Gain Mode is the original FLUX-DRIVE in every way and now, on this wider platform, a new higher gain version of this soulful sound appears in the HI Mode. The Graphic EQ allows the popular “V-Curve” EQ setting to be applied to its layers of thick gain - creating a huge, wide Heavy Rock or Metal sound that still retains the FLUX’s warm character. The original TREBLE and BASS rotary EQ controls can be used to dial in global enhancements and the combination of the two EQ styles produces signature sounds for any genre.
The Graphic EQ can be applied to both HI and LO Gain Modes enabling you to have a global EQ curve or apply it to either gain Mode separately to have two “preset” sounds with different EQ shapes and gain signatures to switch between. A HI TRIM pot allows the volume level of HI to be adjusted in relation to the original LO (FLUX-DRIVE) Mode. However you choose to utilize all this potential, the warm rich FLUX-FIVE overdrive is sure to inspire you and bring out your best.
PRODUCT FEATURES:
- Designed and Handcrafted in Petaluma, California, USA
- True Bypass On/Off Footswitch bypasses all circuitry when off to ensure no tonal loss
- HI/LO Footswitch provides instant access between HI & LO (Gain) Modes for greater musical versatility
- Gain Control allows you to dial in the perfect amount of vocal-overdrive, dynamic to sustaining
- Bass & Treble Controls provide +/- 12dB of EQ boost or cut for exceptional overall tone shaping
- 5-Band Graphic EQ provides Auto-Assignability to either Mode (HI or LO) via Independent On/Off Switches and Mesa’s legendary tone-shaping power with +/- 12dB of boost or cut at 80Hz, 240Hz, 750Hz, 2.2Khz and 6.6Khz
- HI Trim Level Control with LED Indicator provides an Independent Level Boost when HI Mode is activated
- Master Level Control provides an overall variable range of signal boost up to +20dB
- On/Off Status LED with Dual Color LED’s to indicate the active Mode (LO = Yellow / HI = Red)
- 9V Battery Powered or Externally Powered (optional) via External Power Supply Input Jack
- Input & Output Jacks (Nominal Input -20dB)
SPECIFICATIONS
- Dimensions (W/D/H): 5.78" x 4.76" x 2.30" (146.8mm x 121mm x 58.4mm)
- Weight: 1.7 lbs. (771g) with battery, 1.6 lbs. (725.7g) without battery
- True Bypass Switching
- Battery Type: 9VDC (one)
- Power Consumption (Current Draw): 9VDC/25mA
- External Power Supply (Not Included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.
- Input Impedance: 1M Ohm (500k Ohm minimum)
- Output Impedance: 10k Ohm
